Description

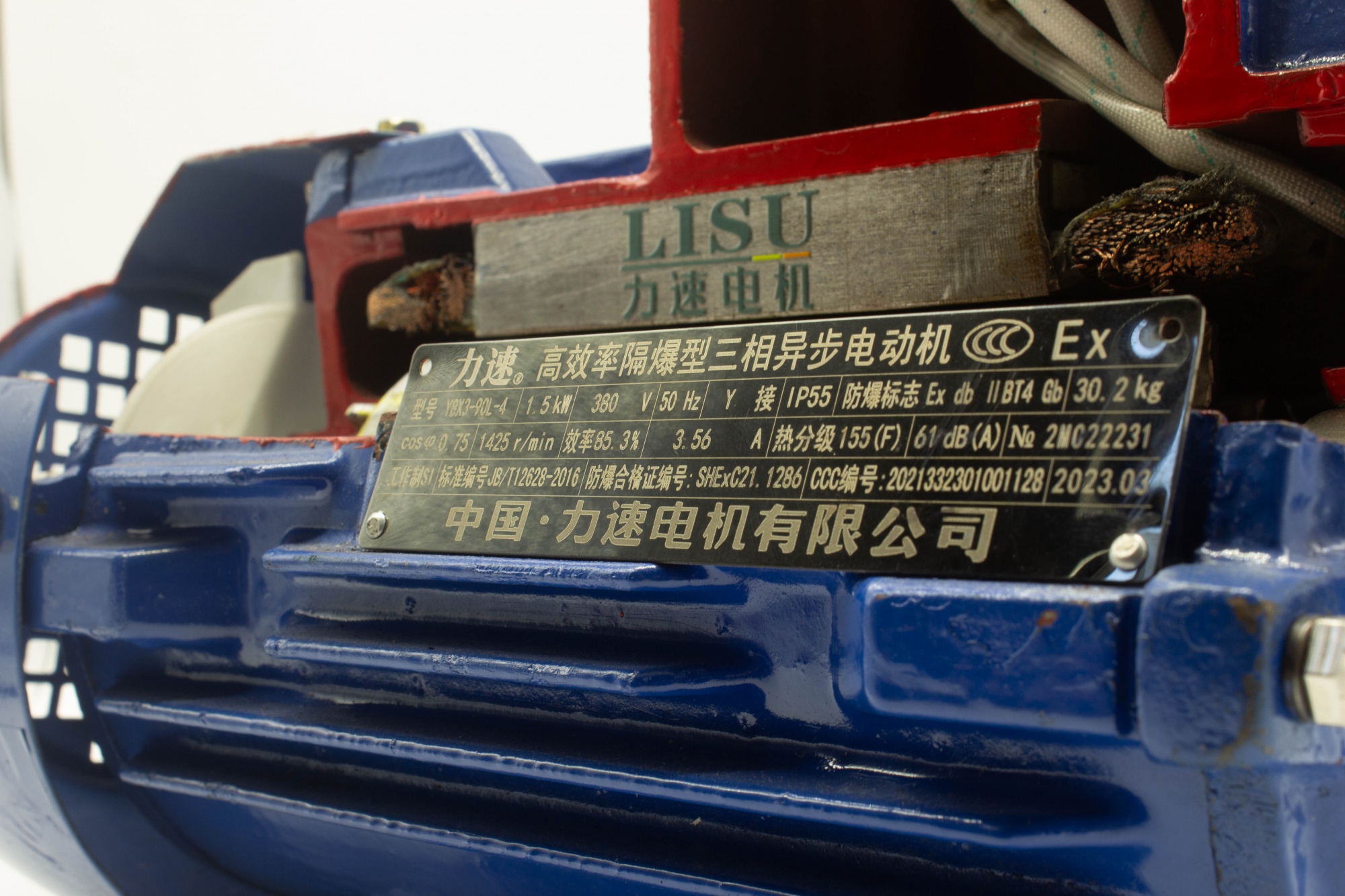

YBX3 series explosion-proof three phase asynchronous motors are the replacement products of YB3 series.

This series motor has the advantages of high efficiency, small volume, light weight, beautiful appearance, reliable operation, low noise, convenient operation and maintenance.

The power grade and mounting size of the motor are in line with IEC standard, and the mounting size is exactly the same as that of YB2 and YB3.

The efficiency of the motor conforms to Grade 3 energy efficiency standard in the national standard “Motor Energy Efficiency Limitation Value and Energy Efficiency Grade” (GB 18613 --2020).

The explosion-proof performance of YBX3 series motors conform to GB3836. 1-2010 “Explosive Environments Part 1: General Requirements for Equipment” and GB3836. 2-2010 “Explosive Environments Part 2: The equipment protected by the flameproof shell ‘d’ ”, made of Ex d Ⅰ Mb, Ex d ⅡBT4 Gb, suitable for underground coal mine (non-mining working face) and factory ⅡA, ⅡB grade, temperature classification T1~T4 explosive gas environment places.

Technical Data

Centre height of frame size: 63 ~ 355mm

Power range: 0.12 ~ 315kW

Rated voltage: 380V

Rated frequency: 50Hz

Cooling method: IC411

Duty type: S1

Elevation: not over 1000m

Ambient temperature: -15°C ~ +40°C

Protection class: lP55

Insulation class: F

Installation structure: B3, B35, B5 (can be customized)

Explosion-proof mark: Ex d Ⅰ Mb, Ex d Ⅱ BT4 Gb

Quality management advantage

Adopting a comprehensive quality management model, passing ISO 9001 quality system certification, advanced testing instruments and equipment.

FAQ

Q: What kind of company you are?

A: We are located in coastal industrial city, Sanmen country. The company has been focusing on the development of high-efficiency and energy-saving motors for more than 30 years, and is a modern enterprise integrating R&D, manufacturing, sales and service.

Q: What products do you have?

A: Up to 2000 models of electric motors, such as three-phase asynchronous motors, single-phase asynchronous motors, frequency conversion speed regulating three-phase motors and various types of motor spare parts.

Q: How to order?

A: Step 1, please tell us what model and quantity you need;

  Step 2, then we will make a PI for you to confirm the order details;

  Step 3, when we confirmed everything, can arrange the payment;

  Step 4, finally we deliver the goods within the stipulated time.

Q: Do you provide OEM/ODM service?

A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties. Products can be customized according to customer drawings.

Q: What is your delivery time?

A : Most of the products are OEM, and we can change the voltage, color, number of poles, power and frequency according to your requirements. At least 15 days for sample order, 25-30 days for container order. We will communicate and inform you in advance during peak seasons or special circumstances.

Q: What is your MOQ?

A: The MOQ of each model is 1PC, but the amount needs to be more than $500.

Q: How long is your warranty?

A: We offer a 1-year warranty and lifetime service.

Q: Can I get some samples?

A: Yes, we offer samples, but you will need to cover the costs of the samples, packaging, and shipping.

Q: When can I get the quotation?

A: We will reply immediately after we get your inquiry. If you are urgent to get the price, please call us directly.

Q: Why should I choose LISU electric motor?

A: We have a stable supply chain, an experienced team, complete process equipment, advanced design concepts, and a comprehensive quality management model.
